誰說SSD固態硬碟是不能資料救援的! SSD電腦抓不到,讀不到資料, 請交給雷德資料救援

誰說SSD固態硬碟是不能資料救援的! SSD電腦抓不到,讀不到資料請交給 雷德資料救援,2018年我們可以救援固態硬碟的型號又更多了!


常聽到有許多人說SSD固態硬碟不可能救援出資料的,
我們想說的是SSD固態硬碟還是有機會救援出資料的.
一般SSD電腦上無法讀取時, 基本上大多有二種救援方式,
一是走安全模式針對韌體區去操作救援,
二是拆焊所有晶片讀取, 再手工分析相關參數再導出,
此次案例為 Samsung M.2介面 PM851家族的256GB SSD,
狀況為上電會一直BUSY忙及無法就緒,

Samsung SSD 840 EVO, PM 851 及850 Pro家族有各式不同SATA, M.2, mSATA介面規格,
基本上若SSD固態己經發生故障,
要針對SSD韌體去作讀寫操作,
就須先轉入安全模式,
再透過終端COM指令PORT對SSD作破解操作,
若原廠沒有提供的安全模式短接點,
就須要你自己去查找電路了,

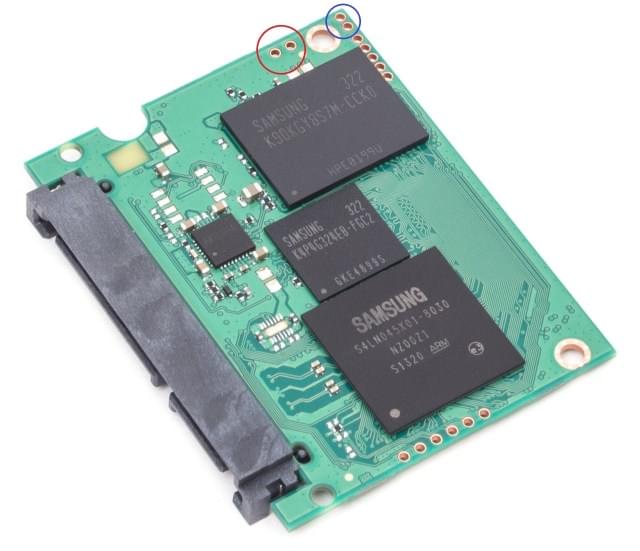

以下即為ACE原廠提供各式不同規格介面下的安全模式短接點.

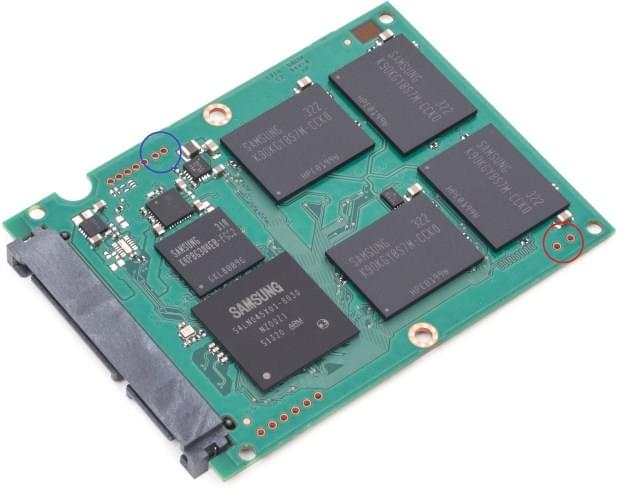

Type 1:

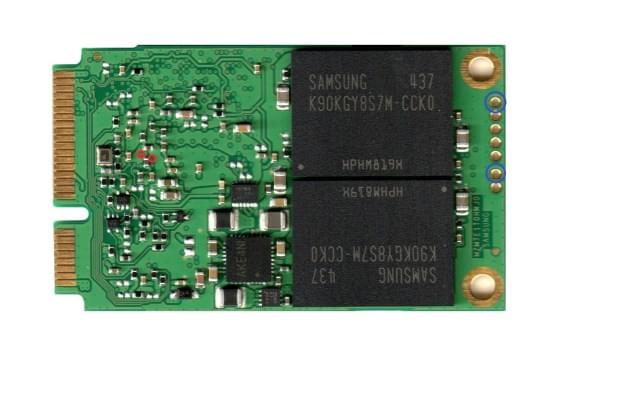

Type 2:

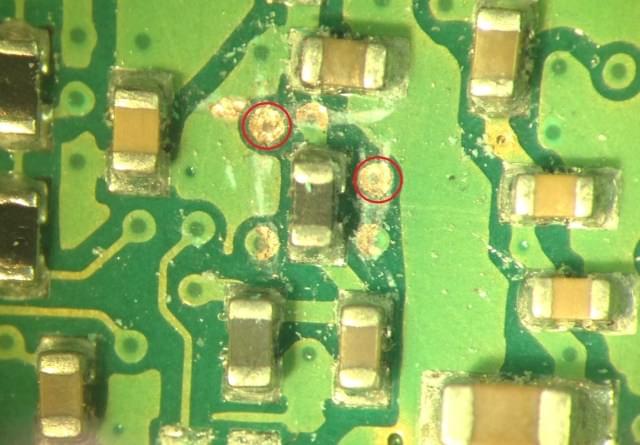

Type 3 :

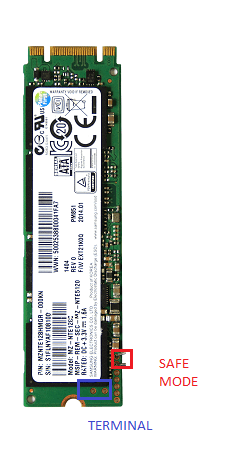

Type 4 :


而此次處理的案例Samsung M.2介面 PM851家族的SSD,
正常依原廠範例會先判斷以850系列走安全模式然後去加載LDR,
但經測試原廠提供850家族共有二個不同的LDR,
但皆不能完全成功加載,
有時看似成功加載LDR了,
但會出現"邏輯訪問是可能的........................否",
             "物理訪問是可能的.........................是",
此時已經可測SSD固態硬碟 的BANK好壞,
及執行重建編譯表等相關指令,
但皆還是無法訪問讀取任何SSD內的資料.

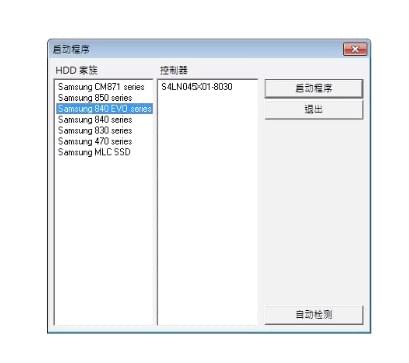

最後是人工手動選擇840 EVO家族

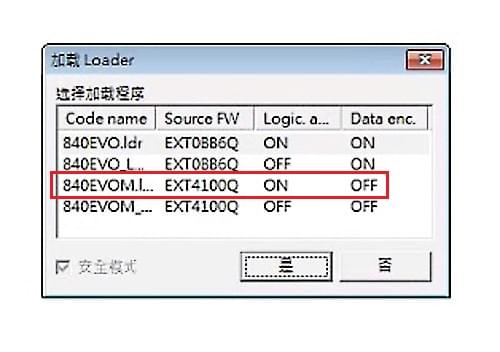

進入後出現共有4個加載LDR的選項,
最右方有不同的"ON"及"OFF"組合,
找到匹配可加載的LDR, 才能順利鏡相資料,
若此案例單只依照原廠教程或自動對應模式去救援,
勢必無法救援出客戶資料, 原廠提供了救援工具,
但部份故障救援情況原廠並未提供教程,
尚須自行不斷交叉測試研究才能破解,

由於此顆SSD固態硬碟FLASH晶片狀況也不太OK,
按照標準讀取模式及速度,讀取不用1,2分鐘即會離線,

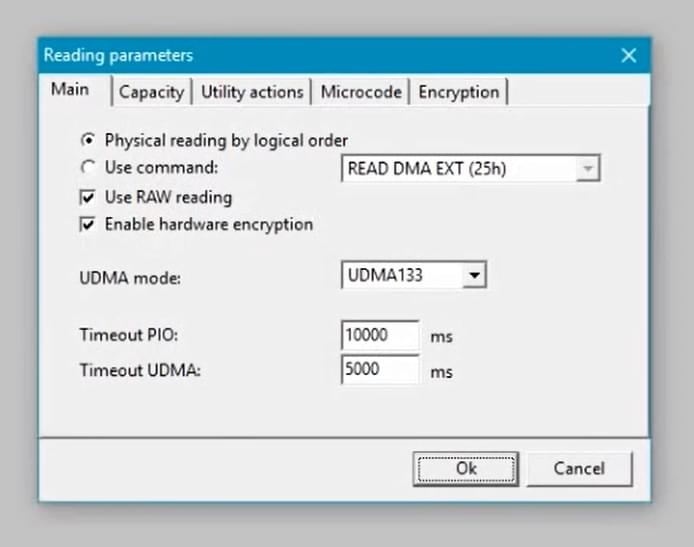

經過不斷的調整修正讀取的參數,
終可以順利鏡相99%左右的BLOCKS, 剩下的1%,
就須約數十次的”短接進安全模式”->”加載LDR”->”設定讀取參數”->”讀取鏡相”->“遇到壞的BLOCK離線”的循環,
才能慢慢補齊完整的資料,
無法設定一次就可順利讀取完成,
是一件滿耗費工程師操作時間的一件案例.

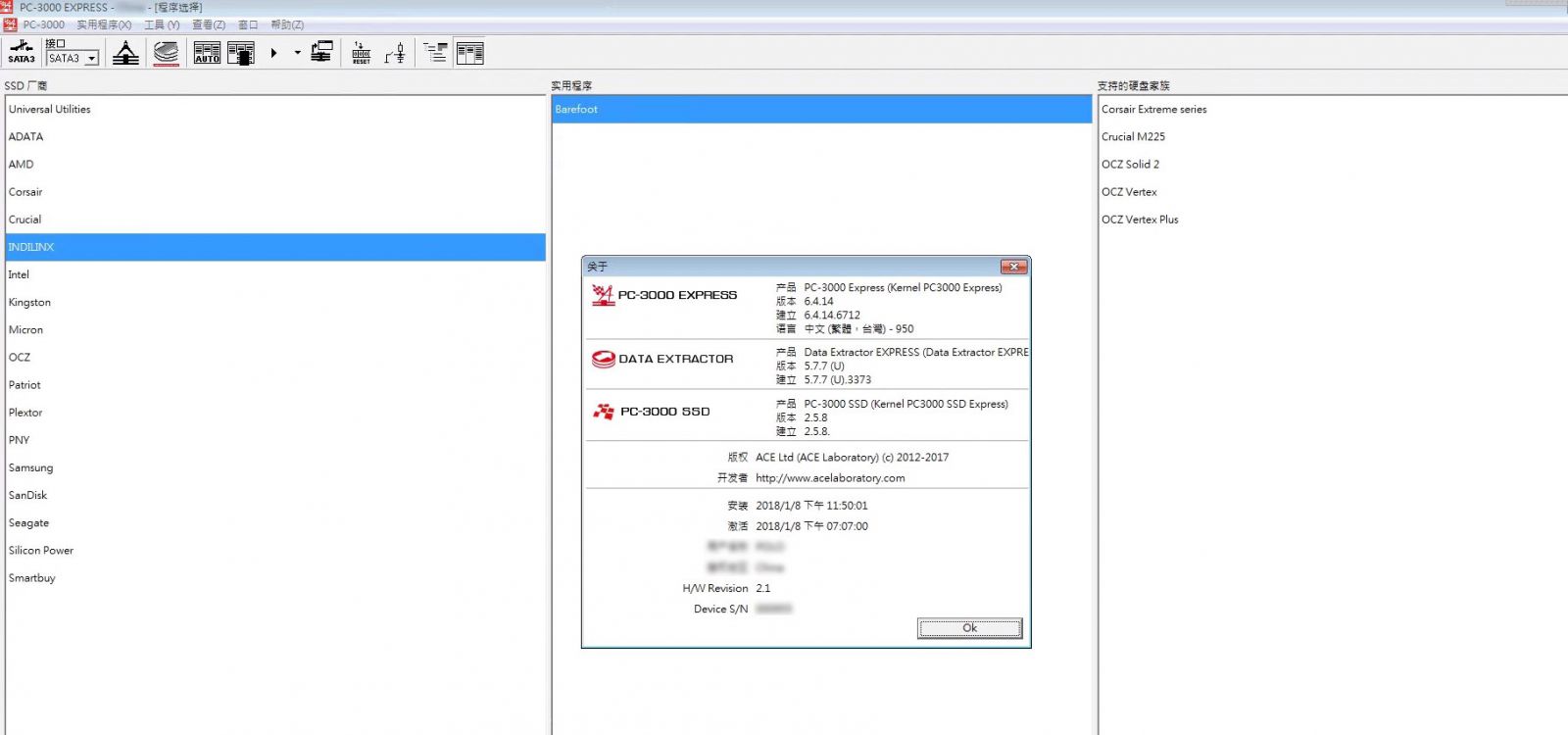

雷德資料救援針對SSD固態硬碟可以處理資料救援的型號又更多了,目前2018年1月支援處理的SSD固態硬碟型號及主控清單如下:

Indilinx Barefoot family (IDX100XXXX)
  • OCZ Vertex 1;
  • OCZ Solid 2 series;
  • Crucial M225;
  • Corsair Extreme series;
  • ALL OTHER DRIVRES BASED ON IDX1xXX CPU!!!

JMicron\Toshiba family (JMF616 and TC58NCF616GDT)
  • Kingston V100 (JMF 616 and Toshiba TC58NCF616GDT);
  • Kingston V200 (JMF 667 and Toshiba TC58NCF667GDT) ;
Intel Postville family (PC29AS21AA0)
  • Intel X18;
  • Intel X25;
  • Intel 320;
  • Intel 710;
Marwell VanGogh \ VanGogh 2 family (88SS9174, 88SS9187, 88SS9189, 88SS9190, 88SS1074)
  • Crucial M4;
  • Crucial C300;
  • Crucial C400
  • Crucial M500
  • Micron C400;
  • Micron C300;
  • Intel 510;
  • Plextor M3;
  • Plextor M3 Pro;
  • Plextor M5S;
  • Plextor M5 Pro;
  • Plextor M5 Pro Extreme;
  • Crucial M550;
  • Crucial MX100;
  • Crucial MX200;
  • Sandisk X300;
  • Sandisk Ultra II (Including Marvell 88SS1074 modification!);
  • Sandisk Ultra Plus;
  • Sandisk Genesis;
  • Sandisk Vulcan;
  • Sandisk X110 (M.2 2260)
LAMD family (LM87800)
  • Seagate 600 series;
  • Corsair Neutron series;

SAMSUNG family
  • Samsung MLC (S3C29RBB01-YK40 CPU based);
  • Samsung 470 Including Apple models(S3C29MAX01-Y340 CPU based) ;
  • Samsung PM810 (mSATA version of 470) (S3C29MAX01-Y340 CPU based);
  • Samsung 830 Including Apple models (S4LJ204X01-Y040 CPU based);
  • Samsung PM830; (S4LJ204X01-Y040 CPU based)
  • Samsung 840 (S4LN021X01-8030 CPU based);
  • Samsung PM840 (S4LN021X01-8030 CPU based);
  • Samsung PM841 (S4LN021X01-8030 CPU based);
  • Samsung 840 Pro (S4LN021X01-8030 CPU based);
  • Samsung 840 Evo (Including mSATA) (S4LN045X01-8030 CPU based);
  • Samsung PM851 (Including mSATA) (S4LN045X01-8030 CPU based);
  • Samsung CM871 (S4LN054X02-Y030 CPU based);
  • Samsung 850 Pro (S4LN045X01-8030 CPU based);
Toshiba

•     OCZ (Toshiba) Trion 100);
•     OCZ (Toshiba) Trion 150;
•     Toshiba Q300;

OCZ (Barefoot 3) family (IDX500Mxx)
  • OCZ ARC  100;
  • OCZ Vector;
  • OCZ Vector 150;
  • OCZ Vector 180;
  • OCZ Vertex 450;
  • OCZ Vertex 460;
  • OCZ Vertex 460A;
  • OCZ Vector 480;
  • AMD Radeon R7;

Phison family (PS3105, PS3108, PS3109,PS3110)
  • Crucial V4;
  • Corsair Nova;
  • Corsair Force LS;
  • Kingston SMSM15S3;
  • Patriot Blaze;
  • Silicon Power Slim S55;
  • Smartbuy Ignition 2;
  • Smartbuy S9M;
  • Smartbuy Revival
  • Smartbuy Firestone
  • Smartbuy Ignition 4
  • Patriot Blast
  • Kingston SSDNow UV300
  • Kingston SSDNow KC400
  • Kingston HyperX Savage
  • All other PS3110-based SSD!
  • ALL OTHER DRIVRES BASED ON PS3105/PS3108/PS3109/PS3110!!

Silicon Motion family (SM2246LT, SM2246XT, SM2246EN, SM2256XT)

  • Sandisk SSD Plus;
  • Crucial BX100;
  • Plextor M6V;
  • Radeon R3;
  • PNY CS1111;
  • ADATA SP550;
  • ALL OTHER DRIVES BASED ON SM2246/2256 CPU!!!

  • SandForce based SSD


    A-DATA:
    • S511 2.5" SATA 6Gb/s SSD
    • S510 2.5" SATA 6Gb/s SSD
    • Premier Pro SP900 2.5" SATA 6Gb/s SSD
    • XPG SX900 2.5" SATA 6Gb/s SSD
    • XPG SX910 2.5" SATA 6Gb/s SSD
    • Premier SP800 2.5" SATA 3Gb/s SSD
    • XM13 mSATA SSD
    • XPG SX300 mSATA SSD
    • Premier Pro SP300 mSATA SSD

AMP INC:
  • Bay Bridge Internal miniSATA SSD (AMP341)
  • SATAsphere 1.8" Micro SATA SSD
  • SATAsphere 2.5" SATA II SSD
  • SATAsphere Mini PCI-e 70mm SSD
  • SATAspheremSATA 70mm SSD
  • SATAspheremSATA 50mm SSD
  • SATAsphere Slim SATA (MO-297A) SSD

Apacer:
  • Turbo II Series — AS602 SSD

AXIOM:
  • Axiom Signature Series SSD
  • Axiom 2.5" Hot-Swap SATA 6Gb SSD - Enterprise

Core Rise:
T.  Comay Pluto SX 3- 2.5" SATA 6Gb/s SSD with 5K PE NAND
U. Comay Pluto CC 3- 2.5" SATA 6Gb/s Cloud Computing SSD with 5K PE
V. Comay Pluto SW 3- 2.5" SATA 6Gb/s SSD with eMLC NAND
W.          Comay Pluto SP 3- 2.5" SATA 6Gb/s Enterprise SLC SSD
X.  Comay Venus Pro 3- 2.5" SATA 6Gb/s Client SSD
Y.  Comay Venus 3 - 2.5" SATA 6Gb/s Client SSD
Z.  Comay Ceres Pro 3- mSATA SSD with Synchoronus MLC NAND
AA.      Comay Ceres 3- mSATA SSD with Asynchoronus MLC NAND

Corsair:
o   Accelerator Cache SSD Series SATA 3Gb/s SSD
o   Force Series 3 SATA 6Gb/s SSD
o   Force Series GT SATA 6Gb/s SSD
o   Force Series GS SATA 6Gb/s SSD
o   Force Seriese FX

KingSpec:
o   C3000
o   E3000s
o   E5000
o   M5000

Kingston:
o   HyperX SSD
o   HyperX 3K SSD
o   SSDNow V+200 SSD
o   SSDNow KC100
o   SSDNow V300 SSD

OCZ:
o   Agility 3 SSD
o   RevoDrive 3 PCI-Express SSD
o   OCZ RevoDrive 3 X2 PCI-Express SSD
o   Synapse Cache SATA III 2.5" SSD
o   Vertex 3 SSD
o   Vertex 3 Max IOPS SSD
o   Z-Drive R4 C Series SSD
o   Z-Drive R4 R Series SSD
o   Agility 2 SSD
o   IBIS Series High-Speed Data Link 3.5" SSD
o   RevoDrive PCI-Express SSD
o   RevoDrive X2 PCI-Express SSD
o   VeloDrive PCI-Express SSD
o   Vertex 2 SSD
o   Vertex 2 EX Series SSD
o   Vertex 2 Pro Series SSD
o   Vertex 4

Patriot:
o   Pyro SATA 6Gb/s SSD
o   Pyro SE SATA 6Gb/s SSD
o   Wildfire SATA 6Gb/s SSD

PNY:
o   Prevail Series SSD
o   XLR8 Series SSD
o   XLR8 PRO Series SSD

Silicon Power:
o   Velox Series V70 2.5” SATA 6Gb/s SSD
o   Velox Series V30 2.5” SATA 6Gb/s SSD
o   Velox Series V20 2.5” SATA SSD

Silicon Motion:
o Repairing functions have been added for SM2246XT based drives;
o Repairing functions have been added for SM2246EN based drives;
o Repairing functions have been added for SM2256K based drives;
o Algorithm of translator building for SM2246XT controller based drives has been improved.
若您的故障SSD固態硬碟型號或電路板上主控IC編號是在我們支援的救援清單內,歡迎送來雷德硬碟資料救援幫你作檢測或救援.
